前言

在互联网时代，信息获取和网络连接已成为日常生活不可或缺的一部分。然而，网络防火墙和广告弹窗却困扰着许多用户。为了突破限制，提升网络体验，搭建个人旁路由成为了一个值得考虑的方案。

旁路由，顾名思义，是指在主路由之外，额外建立一条网络连接路径。通过旁路由，我们可以将特定流量（例如翻墙或去广告）单独处理，而不影响家庭其他成员的正常网络使用。

以下是搭建个人旁路由的主要优势：

不可说: 访问被限制的网站和内容。
去广告: 过滤烦人的广告弹窗，提升网页浏览体验。
隐私保护: 隐藏您的真实 IP 地址，保护您的网络隐私。
安全上网: 抵御网络攻击，提高网络安全防护能力

OpenWrt系统

系统来源

从论坛下载固件

推荐恩山论坛,论坛有各种网友编译的固件，可以根据自己的设备和需求，按需下载

按需定制化

工具网站

OPENWRT

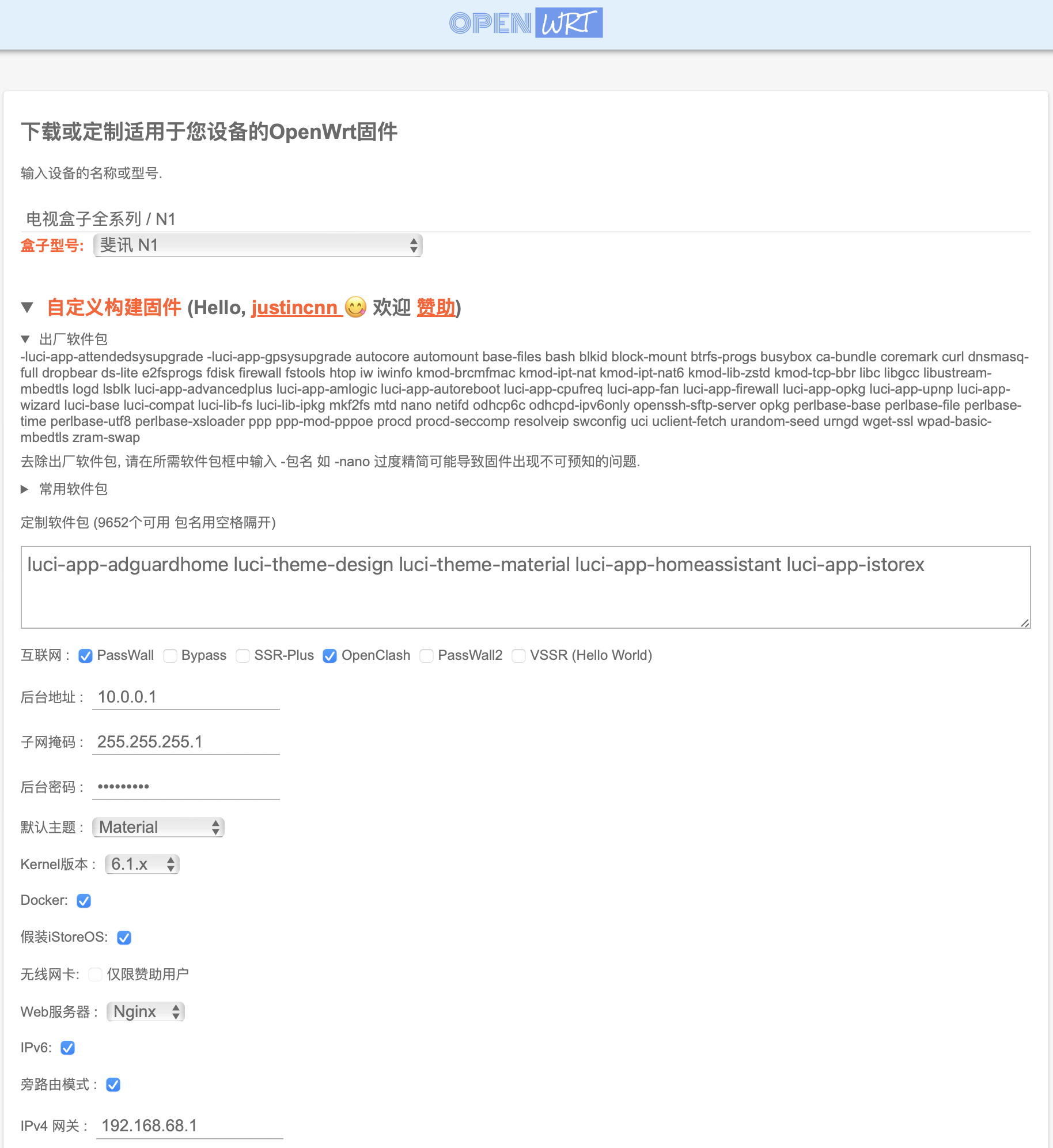

功能和参数定制

选择设备型号和名称：这里以我的N1为例
自定义构建固件
- 出厂软件包：建议不要动
- 常用软件包：可以按需选择，如果列表中没有，直接在输入框内键入关键词，即可选择
- 互联网：Clash必备（建议再选择一个备用）
- 后台地址：建议直接固定局域网IP，接下来设置和安装就需要直接输入此IP
- Docker：作为玩具，怎么可以少的了这个
- 假装IstoreOS：作为玩具，怎么可以少的了这个
- IPv6：打开
- 旁路由模式：为的就是这个，这里打开，省去接下来设置的步骤
- IPv4网关：家庭主路由网关
非赞助用户，一天只有一次构建过程，务必认真填写，如有可能建议赞助

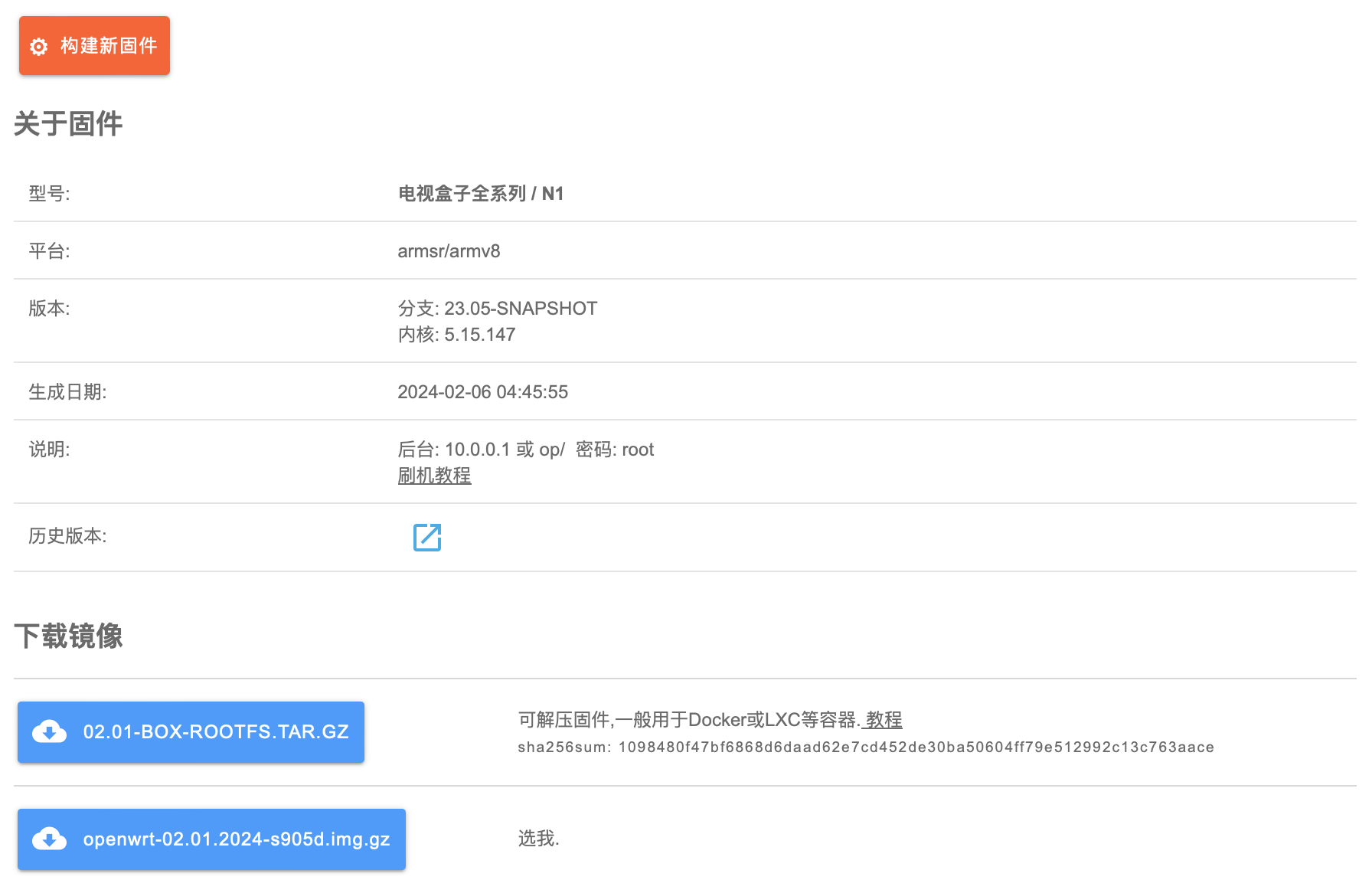

构建和下载固件

截屏2024-02-13 15.28.50

刻录

推荐balenaEtcher：只为全平台推荐，话说什么时候可以出apple silicon的版本

系统烧录

刷机流程

将刻录的U盘插入N1，再接电源
等待几分钟之后，🛜可以发现openwrt的热点，无密码直接链接
电脑IP直接按刚才配置，设置固定IP，否则无法登陆
打开Openwrt的网页，刷机：

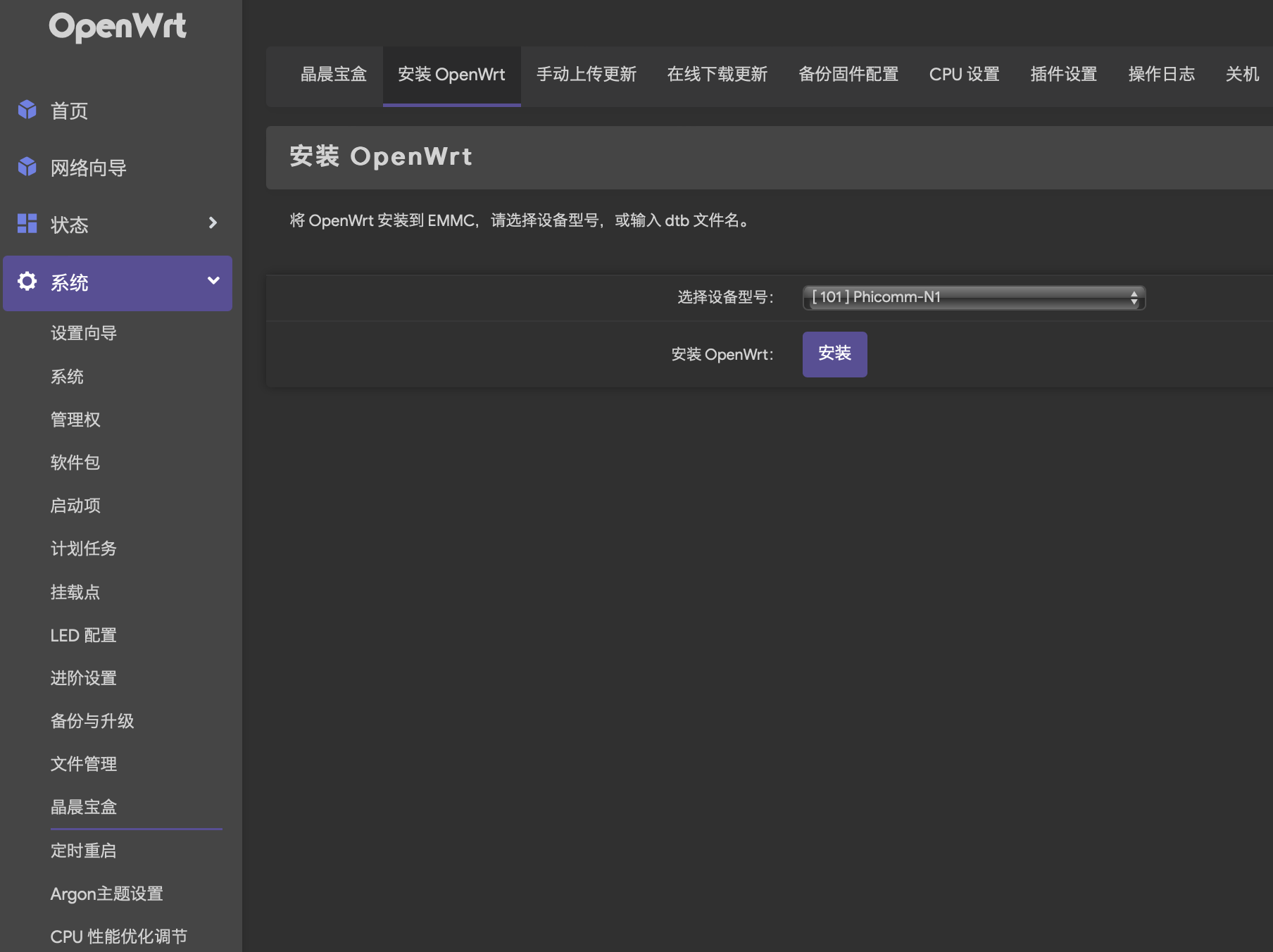

- 系统–晶晨宝盒–安装OpenWrt–选择设备型号–安装（具体入下图）

截屏2024-02-13 15.37.02

Clash设置

插件Bug

由于Clash部分版本的问题，导致无法更新和安装插件，需要执行如下命令：

SSH进入Openwrt

1	`rm -r /etc/openclash/core`

插件下载地址

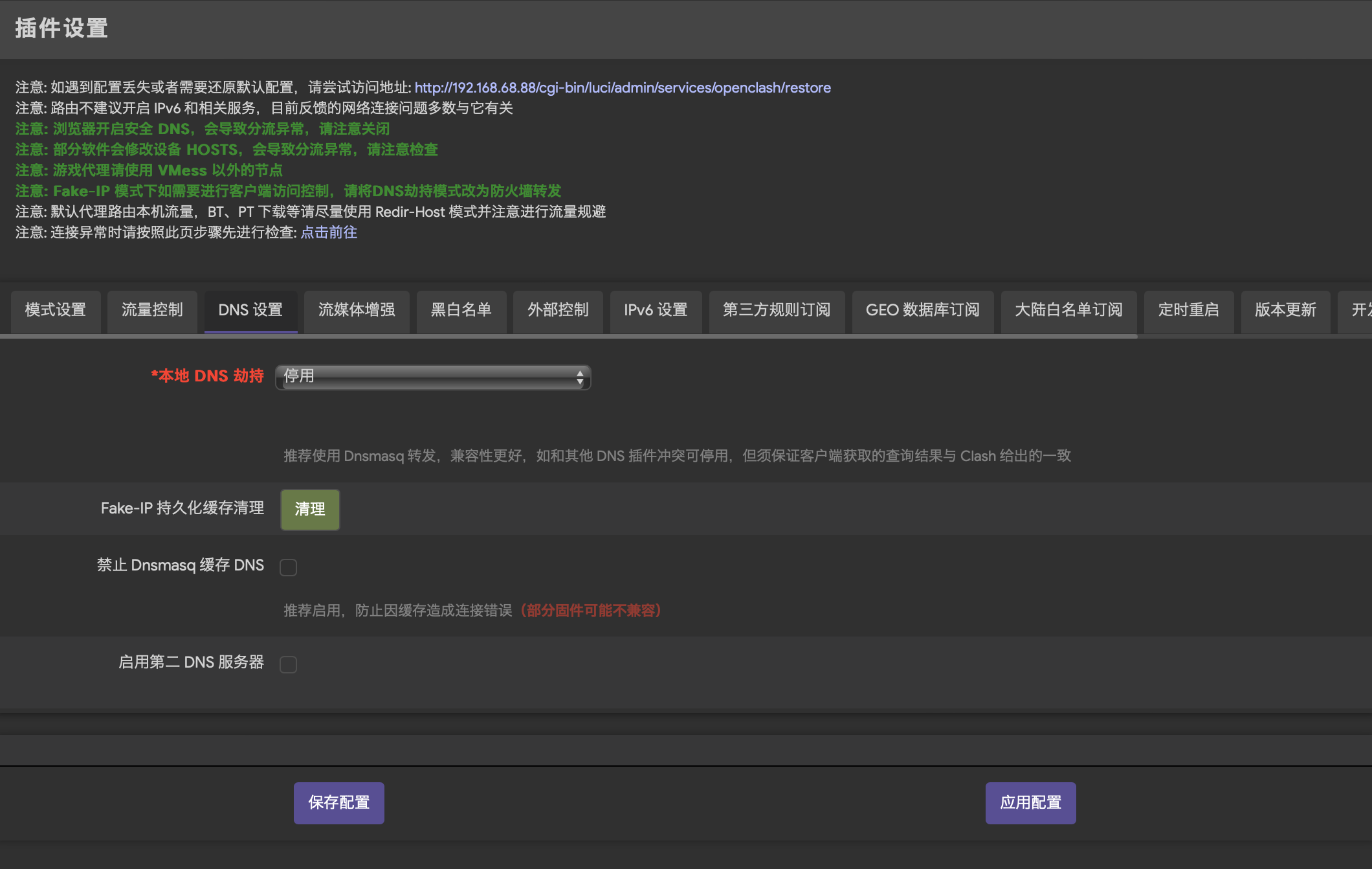

DNS设置

为AdGuard Home起作用

截屏2024-02-13 15.41.25

Adguard Home

更新核心

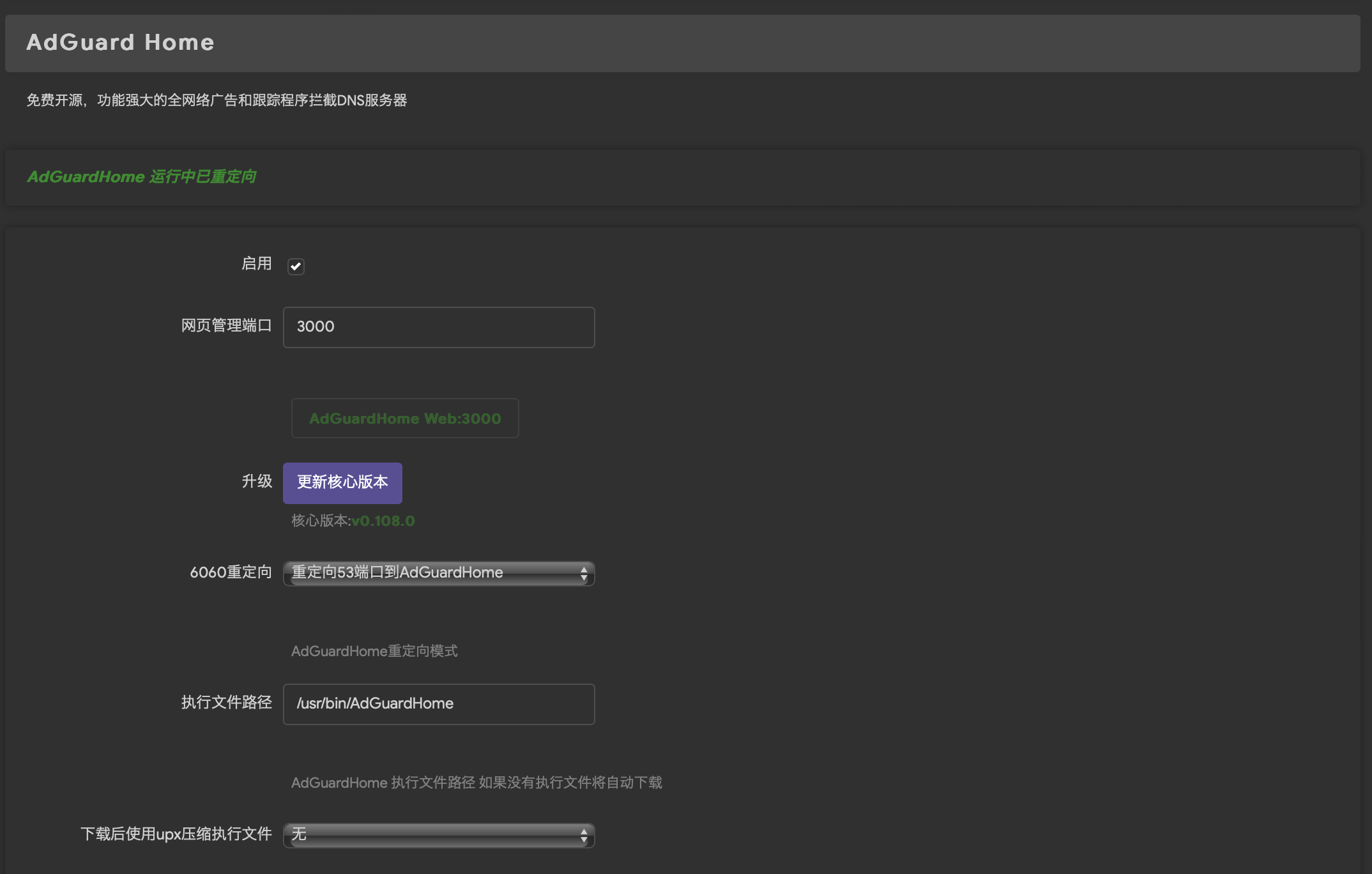

6060重定向设置为：重定向53端口到AdGuardHome

截屏2024-05-04 14.00.09

更新密码

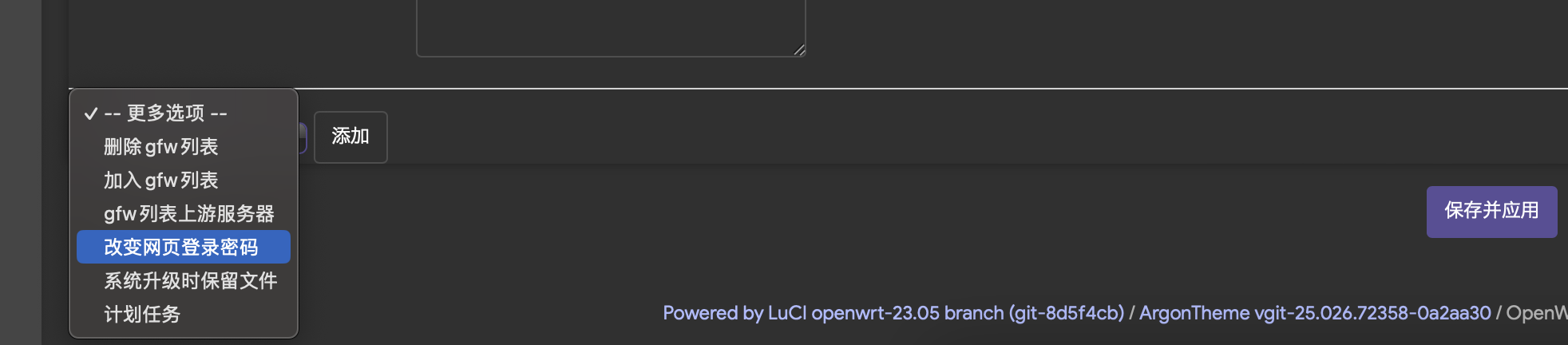

更多选项：改变网页登陆密码

截屏2024-02-13 15.44.16

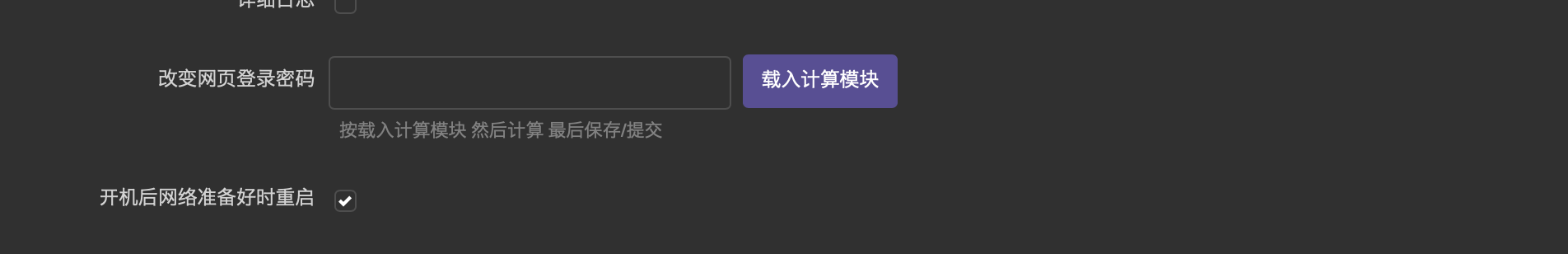

更改网页登陆密码：输入需设置的密码

载入计算模块
将计算结果填入：手动设置

保存并应用

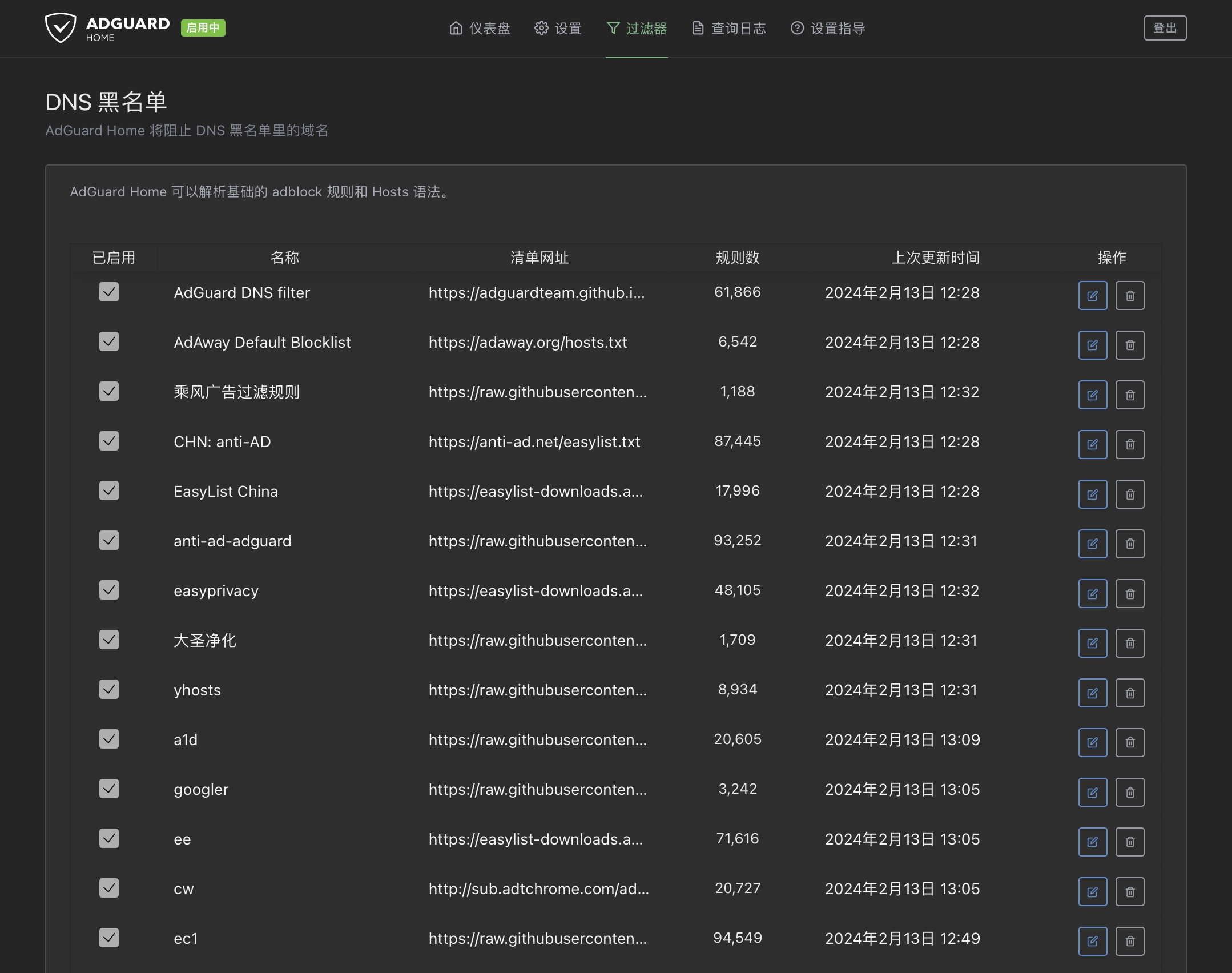

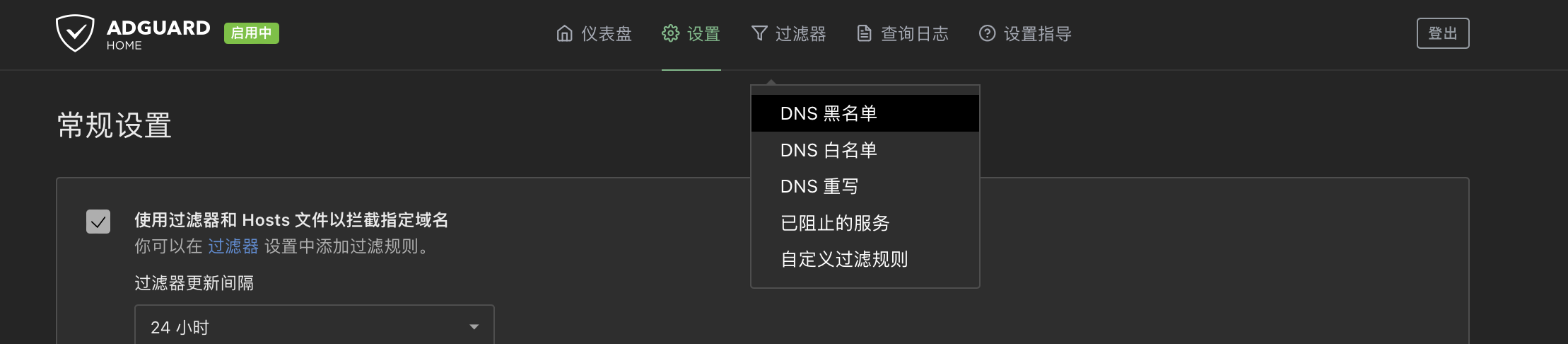

Adguard设置

截屏2024-02-13 15.49.34

截屏2024-02-13 15.50.24

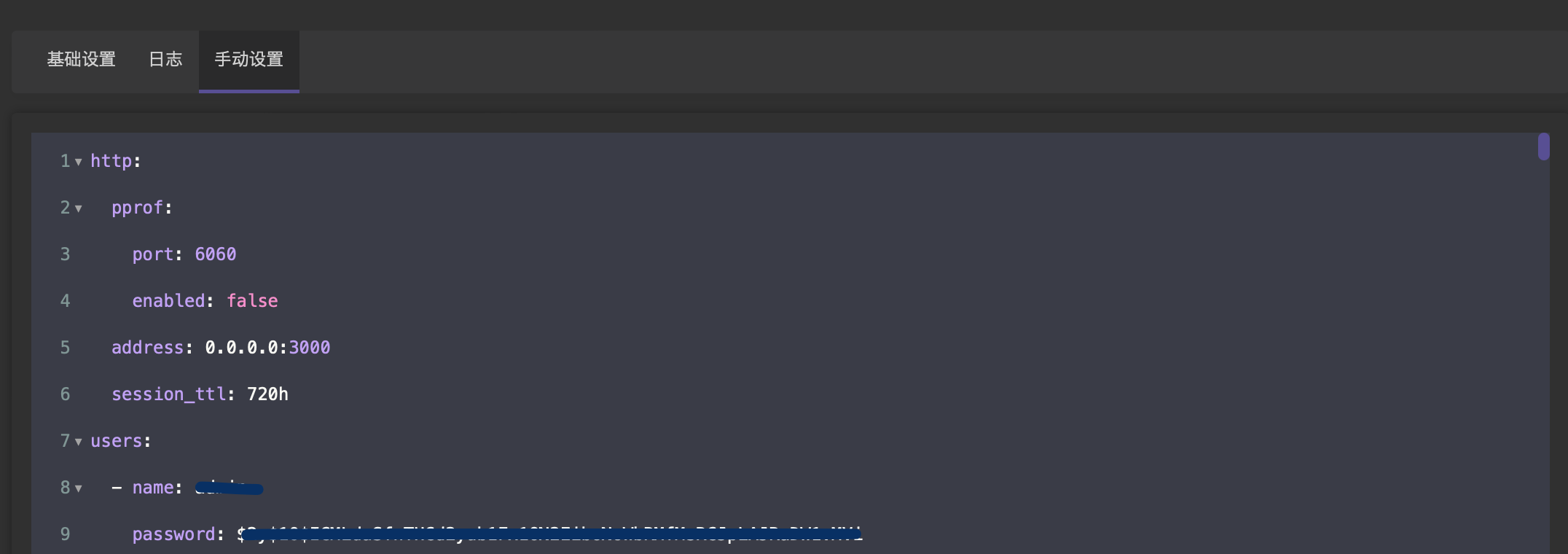

Adguard Home 配置：

http:
  pprof:
    port: 6060
    enabled: false
  address: 0.0.0.0:3000
  session_ttl: 720h
users:
  - name: admin
    password: $2y$10$IGMLdaSfnTHCd2yub1Fx1ON2EiboNoWbRMfMsRCJpLAJRaDW1vMVi
auth_attempts: 99
block_auth_min: 0
http_proxy: ""
language: ""
theme: auto
dns:
  bind_hosts:
    - 0.0.0.0
  port: 5354
  anonymize_client_ip: false
  ratelimit: 0
  ratelimit_subnet_len_ipv4: 24
  ratelimit_subnet_len_ipv6: 56
  ratelimit_whitelist: []
  refuse_any: true
  upstream_dns:
    - 127.0.0.1:7874
    - 127.0.0.1:7890
  upstream_dns_file: ""
  bootstrap_dns:
    - 221.12.1.227
  fallback_dns: []
  upstream_mode: parallel
  fastest_timeout: 1s
  allowed_clients: []
  disallowed_clients: []
  blocked_hosts:
    - version.bind
    - id.server
    - hostname.bind
  trusted_proxies:
    - 127.0.0.0/8
    - ::1/128
  cache_size: 4194304
  cache_ttl_min: 0
  cache_ttl_max: 0
  cache_optimistic: false
  bogus_nxdomain: []
  aaaa_disabled: false
  enable_dnssec: false
  edns_client_subnet:
    custom_ip: ""
    enabled: false
    use_custom: false
  max_goroutines: 300
  handle_ddr: true
  ipset: []
  ipset_file: ""
  bootstrap_prefer_ipv6: false
  upstream_timeout: 10s
  private_networks: []
  use_private_ptr_resolvers: true
  local_ptr_upstreams: []
  use_dns64: false
  dns64_prefixes: []
  serve_http3: false
  use_http3_upstreams: false
  serve_plain_dns: true
tls:
  enabled: false
  server_name: ""
  force_https: false
  port_https: 443
  port_dns_over_tls: 853
  port_dns_over_quic: 784
  port_dnscrypt: 0
  dnscrypt_config_file: ""
  allow_unencrypted_doh: false
  certificate_chain: ""
  private_key: ""
  certificate_path: ""
  private_key_path: ""
  strict_sni_check: false
querylog:
  ignored: []
  interval: 6h
  size_memory: 1000
  enabled: true
  file_enabled: true
statistics:
  ignored: []
  interval: 24h
  enabled: true
filters:
  - enabled: true
    url: https://adguardteam.github.io/AdGuardSDNSFilter/Filters/filter.txt
    name: AdGuard DNS filter
    id: 1
  - enabled: true
    url: https://adaway.org/hosts.txt
    name: AdAway Default Blocklist
    id: 2
  - enabled: true
    url: https://raw.githubusercontent.com/xinggsf/Adblock-Plus-Rule/master/rule.txt
    name: 乘风广告过滤规则
    id: 1649483422
  - enabled: true
    url: https://anti-ad.net/easylist.txt
    name: 'CHN: anti-AD'
    id: 1649484084
  - enabled: true
    url: https://easylist-downloads.adblockplus.org/easylistchina.txt
    name: EasyList China
    id: 1649484085
  - enabled: true
    url: https://raw.githubusercontent.com/privacy-protection-tools/anti-AD/master/anti-ad-adguard.txt
    name: anti-ad-adguard
    id: 1649484198
  - enabled: true
    url: https://easylist-downloads.adblockplus.org/easyprivacy.txt
    name: easyprivacy
    id: 1649954258
  - enabled: true
    url: https://raw.githubusercontent.com/jdlingyu/ad-wars/master/hosts
    name: 大圣净化
    id: 1650076290
  - enabled: true
    url: https://raw.githubusercontent.com/vokins/yhosts/master/hosts
    name: yhosts
    id: 1650076291
  - enabled: true
    url: https://raw.githubusercontent.com/o0HalfLife0o/list/master/ad.txt
    name: a1d
    id: 1654089502
  - enabled: true
    url: https://raw.githubusercontent.com/Goooler/1024_hosts/master/hosts
    name: googler
    id: 1654089509
  - enabled: true
    url: https://easylist-downloads.adblockplus.org/easylistchina+easylist.txt
    name: ee
    id: 1654089510
  - enabled: true
    url: http://sub.adtchrome.com/adt-chinalist-easylist.txt
    name: cw
    id: 1654089511
  - enabled: true
    url: https://raw.githubusercontent.com/privacy-protection-tools/anti-AD/master/adblock-for-dnsmasq.conf
    name: ec1
    id: 1654089512
  - enabled: true
    url: https://raw.githubusercontent.com/rentianyu/Ad-set-hosts/master/adguard
    name: rentianyu / Ad-set-hosts
    id: 1687449634
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_12.txt
    name: Dandelion Sprout's Anti-Malware List
    id: 1687578182
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_42.txt
    name: ShadowWhisperer's Malware List
    id: 1687578183
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_10.txt
    name: Scam Blocklist by DurableNapkin
    id: 1687578184
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_8.txt
    name: NoCoin Filter List
    id: 1687578185
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_31.txt
    name: Stalkerware Indicators List
    id: 1687578186
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_30.txt
    name: Phishing URL Blocklist (PhishTank and OpenPhish)
    id: 1687578187
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_9.txt
    name: The Big List of Hacked Malware Web Sites
    id: 1687578188
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_11.txt
    name: Malicious URL Blocklist (URLHaus)
    id: 1687578189
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_29.txt
    name: 'CHN: AdRules DNS List'
    id: 1707799154
  - enabled: true
    url: https://adguardteam.github.io/HostlistsRegistry/assets/filter_21.txt
    name: 'CHN: anti-AD'
    id: 1707799155
  - enabled: true
    url: https://raw.githubusercontent.com/217heidai/adblockfilters/main/rules/adblockdns.txt
    name: https://github.com/217heidai/adblockfilters
    id: 1707799156
whitelist_filters: []
user_rules:
  - '@@||vk.com^$important'
  - '@@||twitter.com^$important'
  - '@@||twitter.com^$client=''127.0.0.1'''
  - '@@||www.similarweb.com^$important'
  - '@@||similarweb.com^$important'
  - '@@||t.co^$important'
  - '@@||mercadolibre.com^$important'
  - '@@||mercadolibre.com^$client=''127.0.0.1'''
  - '@@||dc.services.visualstudio.com^$important'
  - '@@||dc.services.visualstudio.com^$client=''127.0.0.1'''
  - '@@||northeurope-2.in.applicationinsights.azure.com^$client=''127.0.0.1'''
  - '@@||northeurope-2.in.applicationinsights.azure.com^$important'
  - '@@||wabi-north-europe-g-primary-redirect.analysis.windows.net^$important'
  - '@@||wabi-north-europe-g-primary-redirect.analysis.windows.net^$client=''127.0.0.1'''
  - '@@||mon.us.tiktokv.com^$important'
  - '@@||mcs.us.tiktokv.com^$client=''127.0.0.1'''
  - '@@||s.click.aliexpress.com^$important'
  - '@@||s.click.aliexpress.com^$client=''127.0.0.1'''
  - '@@||analytics.google.com^$client=''127.0.0.1'''
  - '@@||analytics.google.com^$important'
  - '@@||wl.spotify.com^$important'
  - '@@||advertising.amazon.com^$client=''127.0.0.1'''
  - '@@||*.amazon.com^$important'
  - ""
dhcp:
  enabled: false
  interface_name: ""
  local_domain_name: lan
  dhcpv4:
    gateway_ip: ""
    subnet_mask: ""
    range_start: ""
    range_end: ""
    lease_duration: 86400
    icmp_timeout_msec: 1000
    options: []
  dhcpv6:
    range_start: ""
    lease_duration: 86400
    ra_slaac_only: false
    ra_allow_slaac: false
filtering:
  blocking_ipv4: ""
  blocking_ipv6: ""
  blocked_services:
    schedule:
      time_zone: UTC
    ids: []
  protection_disabled_until: null
  safe_search:
    enabled: false
    bing: true
    duckduckgo: true
    google: true
    pixabay: true
    yandex: true
    youtube: true
  blocking_mode: default
  parental_block_host: family-block.dns.adguard.com
  safebrowsing_block_host: standard-block.dns.adguard.com
  rewrites: []
  safebrowsing_cache_size: 1048576
  safesearch_cache_size: 1048576
  parental_cache_size: 1048576
  cache_time: 30
  filters_update_interval: 24
  blocked_response_ttl: 10
  filtering_enabled: true
  parental_enabled: false
  safebrowsing_enabled: false
  protection_enabled: true
clients:
  runtime_sources:
    whois: true
    arp: true
    rdns: true
    dhcp: true
    hosts: true
  persistent: []
log:
  file: ""
  max_backups: 0
  max_size: 100
  max_age: 3
  compress: false
  local_time: false
  verbose: false
os:
  group: ""
  user: ""
  rlimit_nofile: 0
schema_version: 28

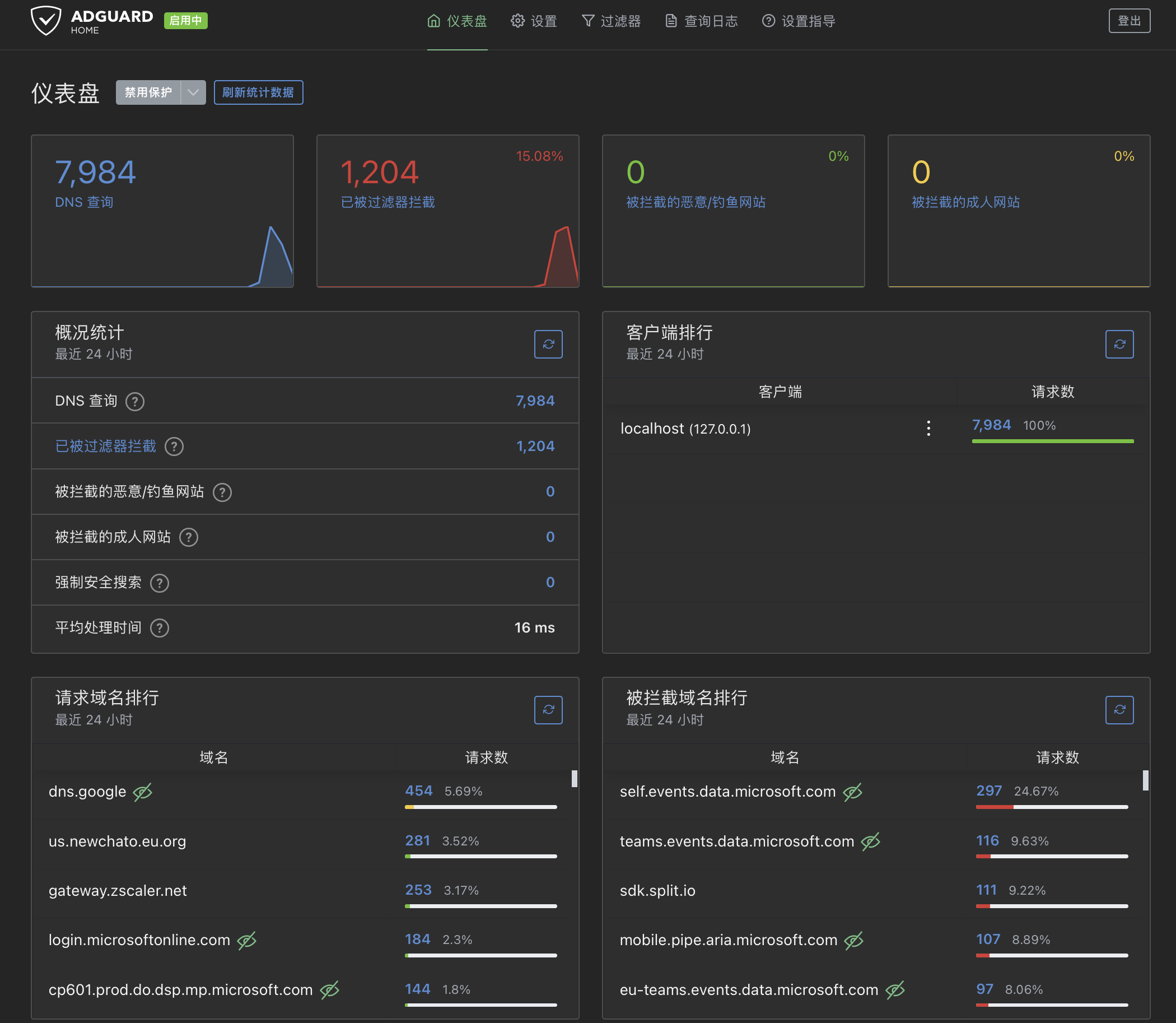

最终效果

截屏2024-02-13 15.54.33
